Filling Capacity
|
2400box/hr
|
|
Filling Range
|
125ml
|
|
Packaging Shape
|
Slim Shaped, Standard Shaped
|
|
Shelf Life
|
in 25-30ºc , juice shelf life 6-12months , milk 6 months
|
|
Packaging Material
|
PET/PAPER/PE/AL/PE/PE
|
|
Voltage
|
220V/380V 50Hz
|
|
Power
|
35kw
|
|
Air Consumption
|
Air pressure: ≥0.6 Mpa
|
|
Weight
|
1750kg
|
|
Size
|
3050*2450*3500mm
|
1) The machine is suitable for filling milk, juice, soymilk etc other beverage.

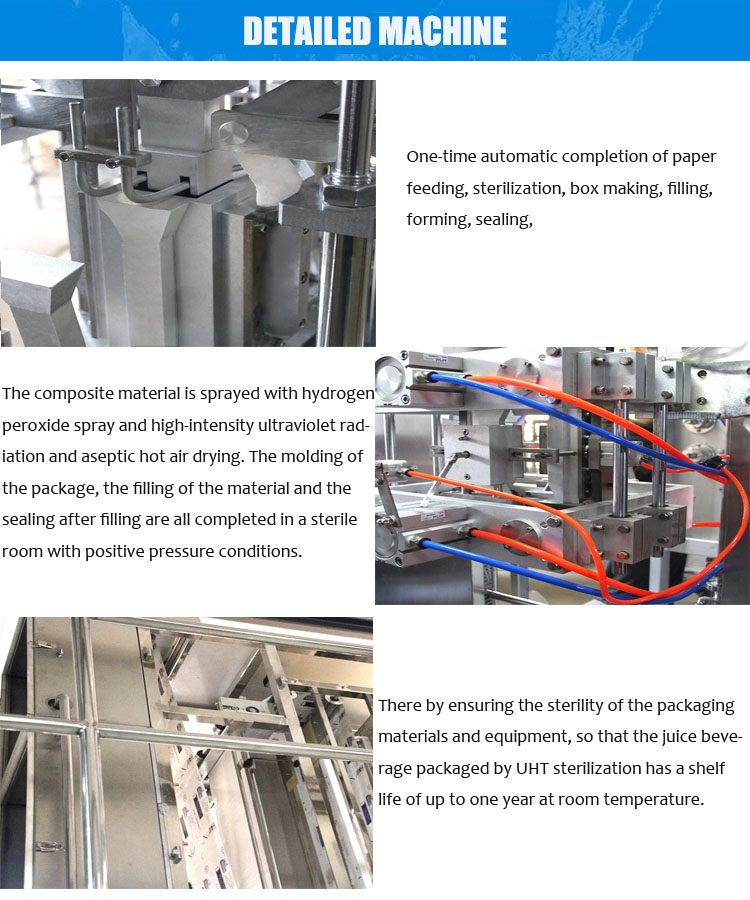

2) The machine Automatic Form Feed –sterilize –filling –shaping – sealing
3) PLC human control, Human - Machine Interface with English and Chinese display. Intuitive operation and Low Fault rate.
4) Automatic finished all the job step, which includes run over the scroll reposefully, batch number, stick plastic tape, chemical and physical sterilizing, roll into cylinder, filling material, sealing-off, molding, cutting and horn-shaped.
5) The forming system we choose our own patent rectangular forming method instead of roundness system. this system made the running much more stable, the function much more reliable, the exterior appearance of the product much perfect.
1) PLC: Japan mitsubishi
2) Touch Screen: Japan mitsubishi
3) Motor: Domestic
4) Temperature control: Real da
5) Inverter: Japan mitsubishi
6) Power:380V;50Hz
7) Low-voltage electrical apparatus: Omron
8) Pneumatic components: Air TAC
9) Proximity switch: Japan & omron
10) Photoelectric: Japan
|
Size
|
3010*2490*3450mm
|
|
weight
|
1770KG
|
|
packing details
|
Automatic Diamond PackaginAutomatic Aspetic Carton Filling And Sealing Machg Aseptic 200ml Carton Juice Filling Machine For Milk is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
We are specialized in research and production of beverage machinery equipment, Approved by the national certification for manufacturing measuring instruments. Our filling machine adopts milk, juice, dairy drink, beverage etc liquid or semi liquid products. Our machines pass CE and ISO certificate, and some get our own natonal patent, sells home and abroad.
